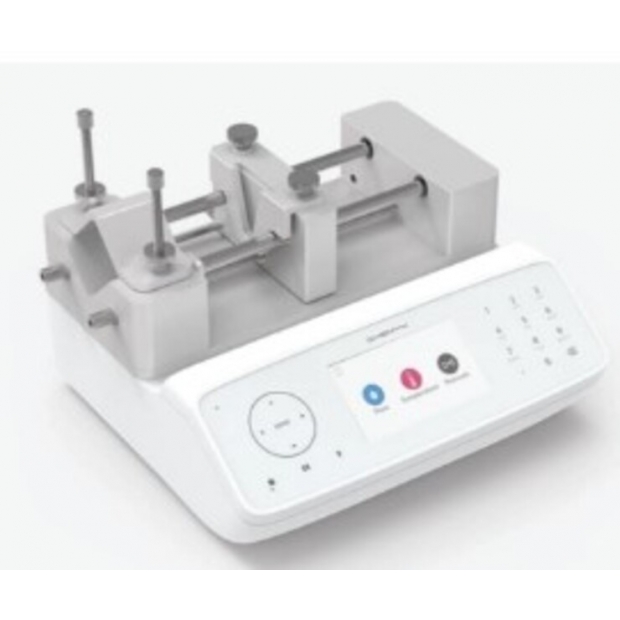

The Fusion 6000-X high-pressure syringe pump is designed for dosing viscous solutions, and semi-solid material injections against
pressure. This system allows also for heated temperature control and pressure modulation while providing precision flow and
performance. It includes prime buttons that allow you to easily adjust the push blocker to the syringe.
FUSION6000-X注射式幫浦--002
/
詳細介紹

FUSION6000-X高壓型注射泵浦

No. of syringe : 2
Accuracy:± <0.35%,
Reproducibility:± < 0.05%
Syringe size:0.5µL to 300mL
Syringe Heating Sleeve Temperature:
up to 80°C
Minimum Flow Rate:.0001 µL/min (with 0.5µL syringe)
Maximum Flow Rate:408 mL/min (with 300mL syringe)
System dimension:9.5 x 8.2 x 4.9 inches (24 x 20.8 x 12.4 cm)
linear force:up to 700lbs (318kg)
Infusion/Withdraw capabilities
Maximum Viscosity:250,000 Cp
display:4.3 inch LCD Touch Screen
System size:11 x 10 x 6.9 inches (28 x 26 x 14 cm)
Connectivity:USB-B, RS232 and TTL Ports
power:110/220 VAC
model No.: FUSION6000-X
