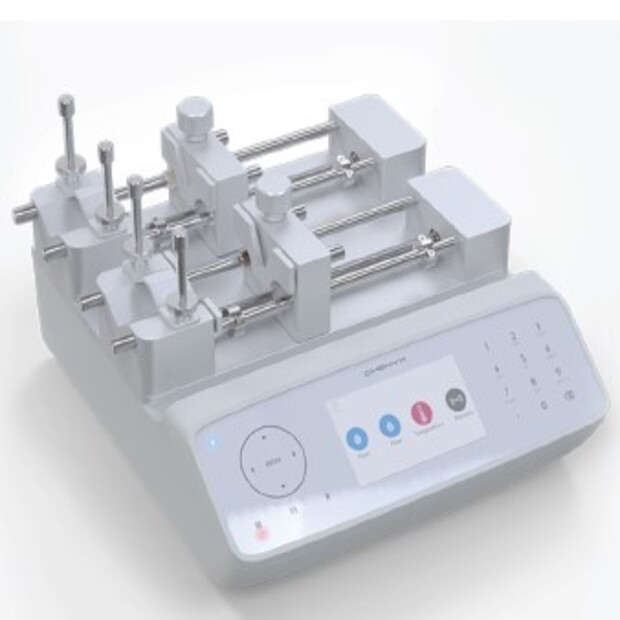

FUSION 4000-X注射泵浦
No. of syringe : 2
Accuracy/Reproducibility:± <0.35%, ±0.2%
Syringe size: 0.5ul-100ml
Minimum Flow Rate:0.0001 µL/min (with 0.5µL syringe)Maximum Flow Rate:170.5 mL/min(with 100mL syringe)
System dimension:11 x 12 x 4.9 inches (28 x 31 x 13 cm)
linear force: 85lb(38.5Kgs)
Motor driver: 1.8" Stepper Motor with micro-stepping
Step Resolution: 0.0293 µL/step.
Operation temperature:4°C to 40°C (40°F to 104°F)
Storage temperature:-10°C to 70°C
Humidity:20% to 80% RH, non-condensing
Infusion/Withdraw capabilities
Display:4.3 inch LCD Touch Screen
Connectivity:USB-B, RS232 and TTL Ports
power:110/220 VAC automatically
switches between 110V to 220V
weight: 19 lb
model No.: FUSION4000-X
